Product Overview

The SED-1000V is a Concealed Smoke Removal System that can be Ducted to Suit Your Air Cleaning Needs. High Efficiency Filtration and 6-inch Carbon VBank make it Perfect for Removing Tobacco Smoke and Odors.

650 – 850 CFM (2-speed) for rooms or areas up to 800 sq. ft. Includes installation hardware PLUS all filters needed for the first year!

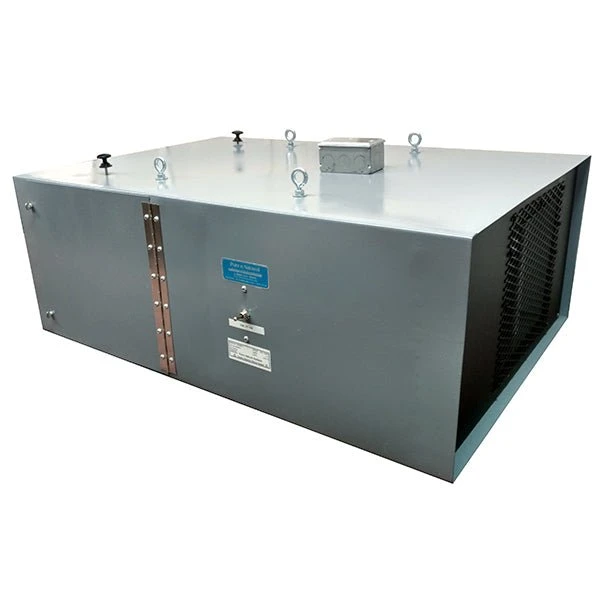

Designed for unobtrusive, ducted installation, the SED-1000V provides up to 800 square feet of air cleaning with a single unit. The SED Air Cleaner is suitable for homes, offices, or commercial establishments and can be concealed and ducted to accommodate your air cleaning and smoke removal needs.

Installation options for the SED-1000-V include;

• Above a solid ceiling or suspended ceiling
• In a basement, attic, or crawl space
• In a utility room, furnace room, closet, etc.

Inflow and outflow air circulation can be customized to your specifications. Consult your HVAC contractor for installation and required ducting (not included).

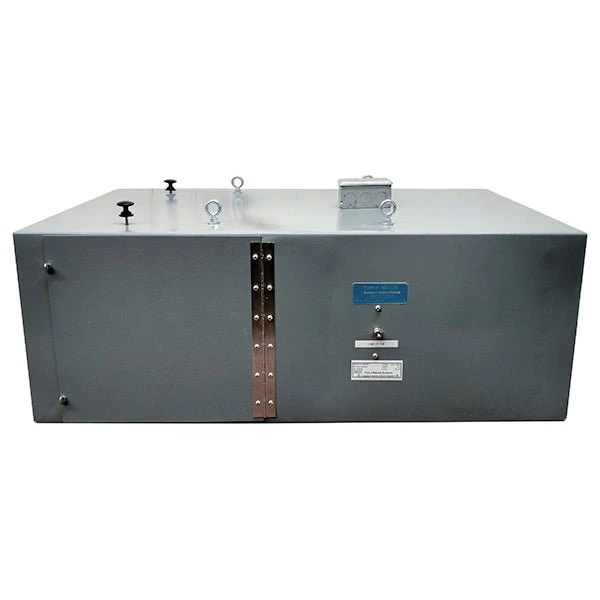

Its efficient multistage High Efficiency & Carbon filtration ensures quality indoor air year-round. All 3 filters in the SED1000V air cleaner are easily accessible from the service door located at the front of the unit. 1 unit is recommended for every 6,000 cubic feet.

3 Filter System Provides Superior Air Cleaning Results

The SED-1000V is an excellent choice for areas with high levels of smoke, odors, and gases. In addition to providing a 95% High Efficiency filter media, the SED-1000-V Concealed Smoke Eater utilizes a 6-inch carbon V-Bank. High Efficiency filters alone cannot remove gases, odors, or particles smaller than .3 microns. Therefore, activated carbon is a necessary requirement for truly clean air. Activated carbon will adsorb ‘some of almost any vapor’. It has a large capacity for organic molecules, especially solvents. Activated carbon is also capable of adsorbing and retaining a wide variety of odors, and chemicals – including cigar smoke smells and cigarette smoke smells – and works extremely well under a wide range of temperature and humidity conditions.

Stage 1 – Pre-Filter
The 1/2-inch polyester pre-filter removes large particles such as lint, hair, dust, and pollen. The pre-filter is important because it helps prolong the life of the High Efficiency filter in the system. Essentially, the pre-filter is the first line of defense in maintaining your system.
Twelve Polyester pre-filters are included with each unit. Pre-filters cannot be washed and must be changed monthly.

Stage 2 – 6-Inch Carbon V-Bank Filter
The 6-Inch Carbon V-Bank Filter in the SED-1000-V is an excellent choice when the need to control tobacco smells is required – including cigar & cigarette odors, and marijuana odors. Activated Carbon removes odors by absorbing gases & VOCs into the porous carbon granules. Think of carbon as an ‘odor sponge’. It can hold many times its weight in odor molecules. Once carbon becomes saturated, however, it loses its efficiency. Therefore, proper maintenance of the carbon filter is required to keep your environment fresh & clean smelling.
One 6-inch Carbon V-Bank is included with each unit. The Carbon V-Bank Filter cannot be washed and should be changed annually.

Stage 3 – High Efficiency Filter
The High Efficiency filter removes very small particles, such as smoke from tobacco (including hookah, cigarette, cigar & marijuana smoke), burning wood, oil, rosin, dust mites, spores, mold spores, pollen, spray paint, spray paint dust, ashes, cement dust, auto emissions, textile fibers, fiberglass, hairspray, insecticide dust, copier toner, and most viruses, just to name a few. As you can see, the High Efficiency filter is an extremely important filter. When used and maintained properly, it will dramatically improve your indoor air quality.
One 6-inch High Efficiency Filter is supplied with each SED-1000-V Concealed Smoke Eater. For best results, the High Efficiency filter cannot be washed and should be changed annually.

OPTIONAL – Factory Installed Remote Control
Easily control your SED-1000-V Concealed Smoke Eater with a handy Remote Control Key Fob. Concealed or ducted systems are usually installed in areas that are not always easily accessible. That’s why a remote control is an excellent choice. Each receiver is factory installed and comes with 2 battery-operated remote control key fobs. (Multiple air cleaners require a separate receiver/transmitter for each unit.) Receiver / Transmitter range is approximately 10 feet under normal operating conditions.

Features and Benefits of the SED-1000/V Ducted Smoke Eater with High Efficiency and Carbon Air Filter System

• Powerful 2-Speed Blower – Effectively draws the air from polluted areas.
• High-Efficiency Filter Media – Over 95% of the airborne particles are removed on each pass.
• Refreshingly Clean Air – Virtually all of the smoke, pollen, dust, and other particles are removed from the air that passes through the SED-1000/V, including microscopic airborne particles.
• Reduced Discomfort – Discharged air is cleaned of the many pollutants that can cause headaches, eye irritation, discomfort, and stuffiness.
• Dramatically Reduced Odors – Offensive odors including lingering smoke residue that absorb into clothing, furniture, and carpeting are reduced.
• Second-Hand Smoke and Odors are No Problem – With a carbon VBank, you can be sure that the SED-1000V will adsorb tobacco smoke smells and odors, including smoke from cigars, cigarettes, pipes, hookah, and marijuana.
• Reduced Allergies & Asthma – Lowering the pollen, spores, and fungi count helps to reduce allergies and asthma that may be caused by these contaminants.

SED-1000V Ducted Smoke Eater with High Efficiency and Carbon Specifications

Capacity	Up to 800 Sq. Ft.
Two Speed (Toggle Switch)	High – 850 CFM | Low – 650 CFM
Dimensions	36″ (L) x 24-3/4″ (W) x 17″ (H)
Cabinet Construction	18 gauge gray steel cabinet
Shipping Weight	125 lbs.
Electrical	120V** | 4.2 Amps | 1/4 Hp Motor
Three Filter System	Includes 1 Year Supply of Filters; (1) 6-inch 95% High Efficiency Filter (1) 6-inch Carbon V-Bank Filter (12) 1/2-inch Pre-Filters
Warranty	1 Year Manufacturer’s Warranty
Certifications	Fan motor and all electrical components are UL Listed and CSA Certified
This unit has not been tested for compliance with California Air Resource Board requirements and cannot be shipped to California.
** The SED-1000-V concealed smoke eater is designed to be wired to a 120 VAC power source. All wiring shall meet local codes.
NOTE: The SED series is designed for contractor-installed ducted use. At a minimum, there should be at least one supply and one return per unit. Contact your local HVAC Contractor for installation and required ducting (not included).

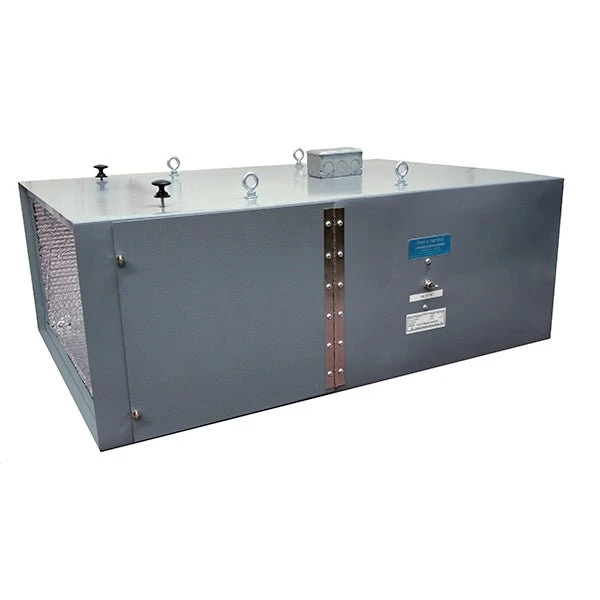

NOTE: The SED-1000-V is equipped with 4 eye bolts installed on each system. Also included is 20′ industrial hanging wire.
