Product Overview

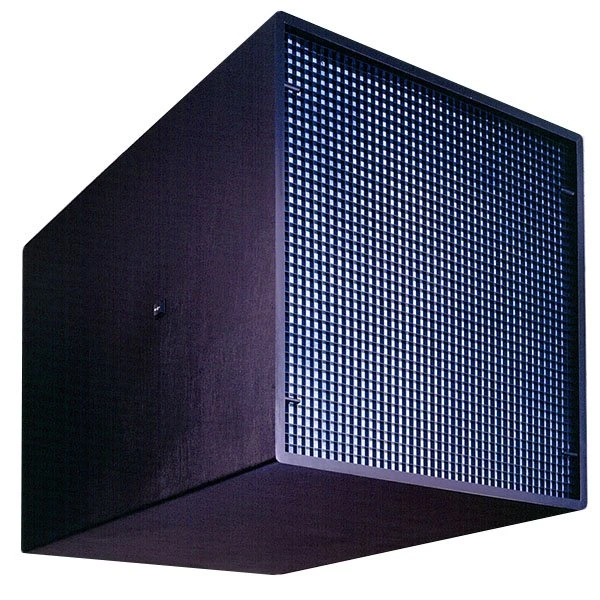

MARK-20-V HEAVY-DUTY SMOKE EATER AND AIR PURIFIER IS THE BEST SMOKE, ODOR & AIRBORNE CONTAMINANT REMOVAL MACHINE FOR PLACES WITH 12-FOOT CEILINGS & HIGHER

One MARK-20-V covers approximately 8,000 cubic feet at 1250-1650 cubic feet per minute.

Includes installation hardware and all filters needed for the first year.

The MARK-20-V heavy-duty smoke eater and commercial air purifier is recommended for cigar smoke, cigarette smoke, musty odors, and airborne contaminant removal in large areas with 12-foot and higher ceilings such as those at Bingo Halls, VFWs, Restaurants, Bars, Smoking Lounge, Hospitals, Print Shops, Electrical Rooms, Pet Groomers, and more. The High-Efficiency filter and 18-pound carbon V-Bank filter in the MARK-20V commercial smoke eater is a superior combo for removing offensive odors and gases. It’s also ideal for removing molecular contaminants in commercial buildings, airports, stadiums, and labs, as well as many other commercial and light industrial applications. The V-Bank filter will hold up in areas with higher humidity and in corrosive atmospheres.

How Does The MARK-20V Commercial Air Cleaner Remove Tobacco Smoke & Odor?

In addition to providing a 95% High Efficiency filter media, the MARK20V heavy-duty commercial smoke eater utilizes 18 pounds of activated carbon in a V-Bank housing. Activated carbon is an important requirement for clean air. Activated carbon will adsorb some of almost any vapor. It has a large capacity for organic molecules, especially solvents. Activated carbon is also capable of adsorbing and retaining a wide variety of odors, chemicals – including cigar smoke smells and cigarette smoke smells – and works well under a wide range of temperature and humidity conditions.

3 Filter Smoke Elimination System Provides Superior Air Results

Stage 1 – Pre-Filter
The 1/2-inch polyester pre-filter removes large particles such as lint, hair, dust, and pollen. The pre-filter is important because it helps prolong the life of the High Efficiency filter in the system. Essentially, the pre-filter is the first line of defense in maintaining your system.
(12) Polyester pre-filters are included with each unit. Pre-filters cannot be washed and must be changed monthly.

Stage 2 – 18 Pound Carbon V-Bank Filter
The 18-pound Carbon V-Bank Filter in the MARK-20V is an excellent choice when the need to control tobacco smells is required – including cigar & cigarette odors, and marijuana odors. Activated Carbon removes odors by absorbing gases & VOCs into the porous carbon granules. Think of carbon as an odor sponge. It can hold many times its weight in odor molecules. However, once carbon becomes saturated it loses its efficiency. Thus, proper maintenance of the carbon filter is required to keep your environment fresh & clean smelling.
(1) 18-Pound Carbon V-Bank is included with each unit. The Carbon V-Bank Filter cannot be washed and should be changed annually.

Stage 3 – High Efficiency Filter
The High Efficiency filter removes very small particles, such as smoke from tobacco (including hookah, cigarette, cigar & marijuana smoke), burning wood, oil, rosin, dust mites, spores, mold spores, pollen, spray paint, spray paint dust, ashes, cement dust, auto emissions, textile fibers, fiberglass, hairspray, insecticide dust, copier toner, and most viruses, just to name a few. As you can see, the High Efficiency filter is an extremely important filter. When used and maintained properly, it will dramatically improve your indoor air quality.
(1) 6-inch High Efficiency Filter is supplied with each MARK-20-V Smoke Eater. For best results, the High Efficiency filter cannot be washed and should be changed annually.

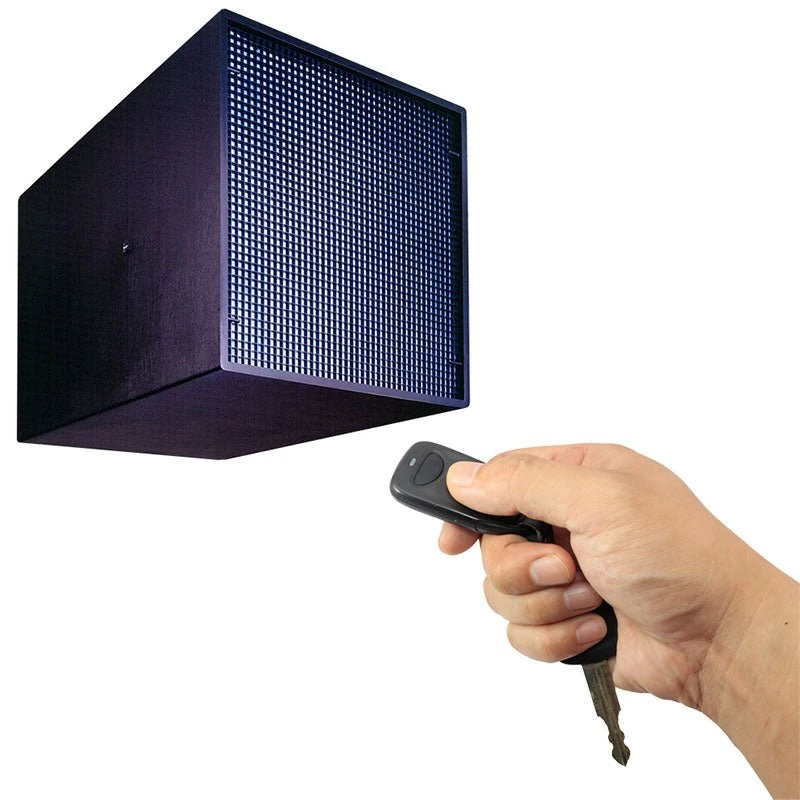

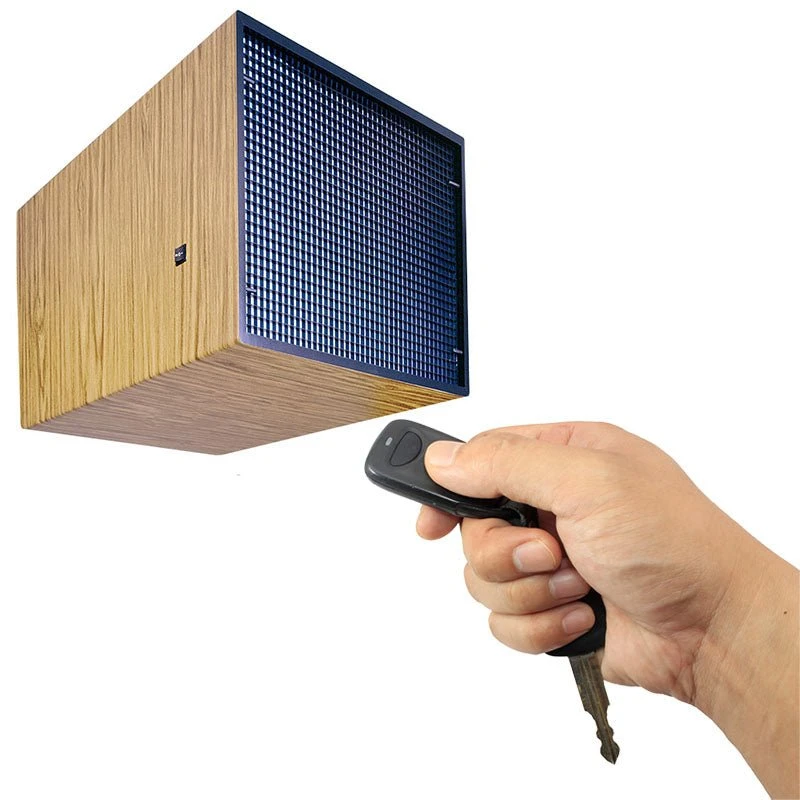

OPTIONAL – Remote Control
Easily control the settings on your MARK 20V Smoke Eater with a handy Remote Control Key Fob. If your Smoke Eater is installed in an awkward area or is too high to reach, the remote control is an excellent choice. Each receiver is factory installed and comes with 2 battery-operated remote control key fobs. (Multiple air cleaners require a separate receiver/transmitter for each unit.) Receiver / Transmitter range is approximately 10 feet under normal operating conditions.

Partial list of gases that can be removed with activated carbon:

• ORGANIC COMPOUNDS – Acids, Alcohols, Aldehydes
• CHLORINATED HYDROCARBONS – Esters, Ethers, Ketones, Mercaptans, Amines
• INORGANIC COMPOUNDS – Halogen Acids, Halogens, Sulphuric Acid, Sulphur Dioxide, Phosgene
• MISCELLANEOUS ODORS FROM – Humans, Animals, Foods, Smoking, Cooking, and Waste Processes

Applications for the MARK 20V Include:

• Airports, libraries, hospitals, research facilities, office buildings, computer rooms
• Clean rooms, electrical rooms, microelectronic applications
• Retail stores, print shops, stadiums, auditoriums, municipal buildings
• Lounges, restaurants, bars, bingo halls, VFW halls, nightclubs, cigar lounges, hookah bars, marijuana facilities
• Homes, pet hospitals, pet groomers, medical laboratories, nursing homes, and health care facilities.

Reducing airborne contaminants can provide a more effective work area and will help to keep your employees, customers, and family happier!

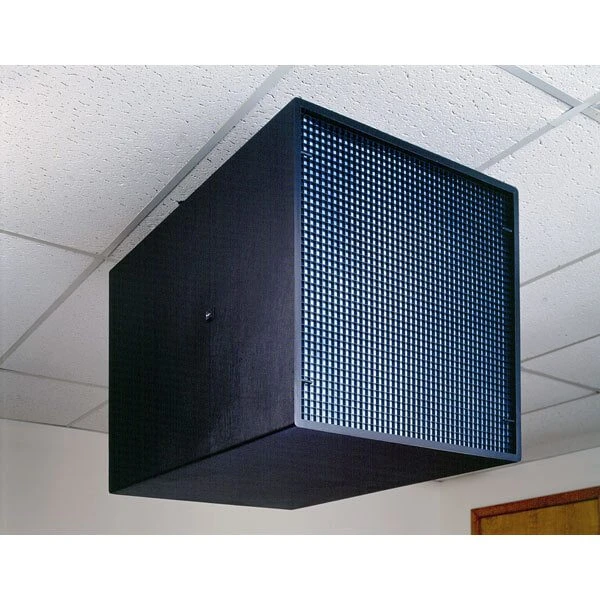

It is recommended that the MARK-20-V Commercial Air Cleaner for Tobacco Smoke and Odors be installed in areas that have 12 ft. ceilings or higher. The Mark-20V heavy duty smoke eater is equipped with 4 eye bolts positioned 16-inch on center on top of each system for easy installation. The installation hardware also includes: 4 S-hooks, 4 eye lags, and industrial hanging wire. 1 unit recommended for approximately 8,000 cubic feet.

MARK-20-V Heavy-Duty Commercial Air Purifier Smoke Eater Specifications

Capacity	Up to 8,000 Cubic Feet
Two Speed	Low – 1,250 CFM | High – 1650 CFM
Installation Options	Ceiling Mount or Wall Mount
The MARK-20-V is equipped with (4) eyebolts installed 16-inch on center on top of each unit for easy installation. Installation hardware also includes (4) S-hooks, (4) eye lags and 20′ of industrial hanging wire.
Dimensions	35.4″ (L) x 25″ (W) x 25″ (H)

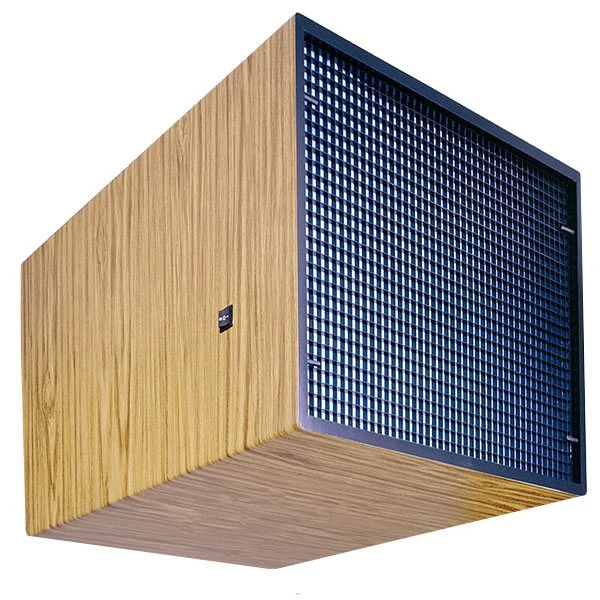

Cabinet Color Options	Black or Woodgrain (Oak)
Shipping Weight	187 lbs.
Electrical	120V | 60 Hz | 9.0 Amps
Power Cord	8-foot long, 3-Prong Grounded Plug – Plugin or Hardwire
Three Filter System	Includes 1 Year Supply of Filters;  (1) 6-inch High Efficiency Filter  (1) 6-inch Carbon V-Bank Filter (18 lb. Carbon Filter)  (12) 1/2-inch Pre-Filters
Warranty	1 Year Manufacturer’s Warranty
Certifications	Fan motor and all electrical components are UL Listed and CSA Certified
MARK-20V Owner’s Manual
MARK-20V Cut Sheet / Brochure
This unit has not been tested for compliance with California Air Resource Board requirements and cannot be shipped to California.
This item ships by LTL freight. Please refer to our shipping policy by clicking here.
This unit is NOT a stock item. It’s built to order up and can take up to several weeks to ship. Please consider this when scheduling your project.
