Product Overview

Ebac CS90E & CS90H High-Capacity Dehumidifiers Provide Energy Efficient Humidity Control In A Wide Range Of Applications

The Ebac CS90E and CS90H high-capacity commercial dehumidifiers include a high lift condensate pump plus an internal electronic humidistat. These CS90 units are quiet, high efficiency and high capacity to suit your humidity control needs. They easily prevent condensation from forming on windows, walls, and ceilings by removing moisture up to 70 pints per day in areas up to 8,369 cubic feet. Plus, both the CS90E & CS90H high-capacity dehumidifiers will stop mold and mildew and prevent rust and corrosion.

Proven Performance – The Ebac CS90 commercial dehumidifiers are a stand-alone solution to humidity problems. Simply plug it into any 110V outlet and it’s ready to start removing moisture. A high-efficiency rotary compressor ensures the maximum extraction with minimal running costs. Rubber feet are anti-vibration which means the CS90 dehumidifier is quiet.

1. Moist air is drawn into the unit by a fan
2. The air passes over a cold surface
3. As the air is cooled, its moisture condenses
4. The collected moisture drips into the container
5. The cooled air is re-heated by the heat recovery system
6. Air passes back into the room 2°C warmer and considerably dryer
7. Defrost system automatically de-ices the unit as necessary
8. The unit switches off automatically when the container is full
9. When the unit achieves the selected level of dryness, it switches off automatically

Ideal applications for the CS90 Commercial Dehumidifier Include Marijuana Growing Facilities – Offices – Laboratories – Storage Areas – Locker Rooms – Computer Rooms – Telecommunication Rooms – Basements

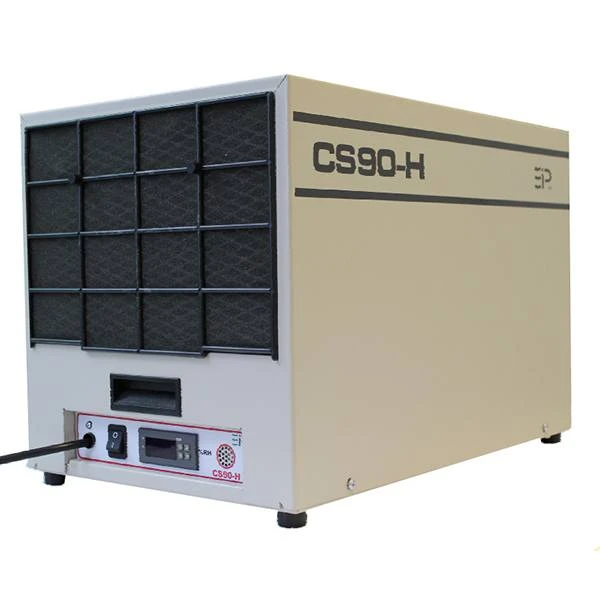

Ebac CS90H High-Capacity Commercial Dehumidifier Features

• Electronic humidistat & sensor maintains the level of dryness – Because the CS90 commercial dehumidifier is equipped with an internal humidistat, it automatically switches on and off to save energy and expense by maintaining the desired level of humidity with intermittent operation.
• Integral high lift condensate pump with 25′ drainage hose
• Ebac’s unique Hot Gas defrosting feature automatically melts away frost buildup providing effective operation at low ambient temperatures.
• Rugged, epoxy powder-coated steel chassis and housing.
• Easy installation and operation with a standard 110V plug.
• Extra-long power cord.
• Concealed handles.

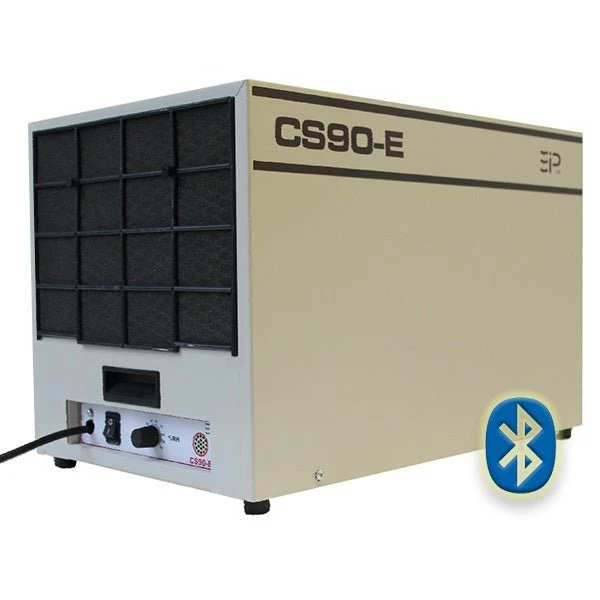

Control The CS90E Commercial Dehumidifier With Your Smartphone Via Bluetooth

The Ebac CS90E Features a Smartphone interface – Bluetooth enabled – The Smartphone interface allows the following additional functions;

• Real-time monitoring of the relay status and room conditions
• Adjustment of Control set point
• Data logging of, Time, Temperature, Humidity, Relay Status, Control, and Alarm Setpoints
• Adjusting the data Logging Interval
• Resetting the data log
• Downloading logged data
• Emailing logged data in RAW or CSV formats (Allowing importing into Excel)

Controlling moisture and humidity is crucial for the health & safety of people – workers, family members, employees, and colleagues. Moisture is a breeding ground for mold, mildew, bacteria, virus, and other airborne germs. In addition, moisture can cause structural damage in homes, buildings, garages, and businesses. Documents and electronic equipment are susceptible to the damage that moisture, humidity, and water can cause. A commercial dehumidifier is a small price to pay when it comes to saving your health and your valuables from being destroyed in water or moisture-laden environments.

Specifications of the Ebac CS90 Commercial Dehumidifiers

Dimensions	15″ (H) x 14″ (W) x 22″ (D)
Weight	83.7 lbs.
Moisture Removal	70 pints per day (80°F, 60% RH) > 15 gallons per day @ saturation
Operating Temperature Range	33°F – 95°F
Effective Area Coverage	8,369 cubic feet
Refrigerant Type	R407c
Airflow	360 CFM
Noise Level	57 d(B)A
Compressor	Rotary
Electrical	110V, 60Hz, 1 Ph | 7 Amps (max) | 880 Watts
Added Features	Electronic Humidistat & Sensor Integral High Lift Condensate Pump with 25′ drain hose CS90E is Bluetooth Enabled
Ebac CS90E Dehumidifier Owner’s Manual (Bluetooth Enabled)
Ebac CS90H Dehumidifier Owner’s Manual
Ebac CS90 Dehumidifier Product Brochure / Spec Sheet
What’s In The Box?	Ebac CS90 Dehumidifier Jubilee clip 25-foot PVC drainage tube Product Manual
Warranty	One-year unconditional warranty against any manufacturing defects in workmanship or material.
Certifications	CSA Certified
