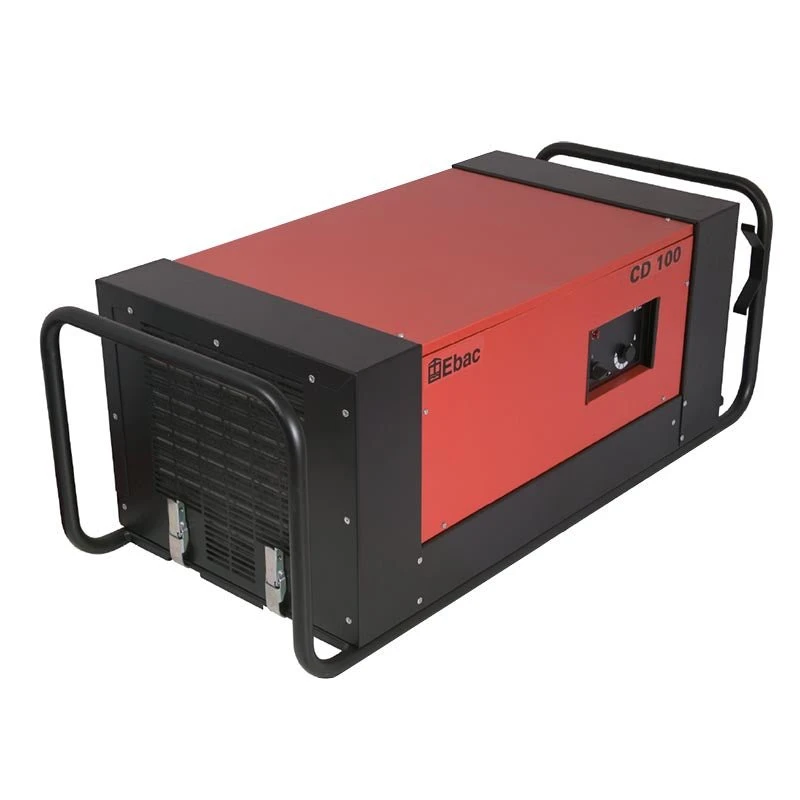

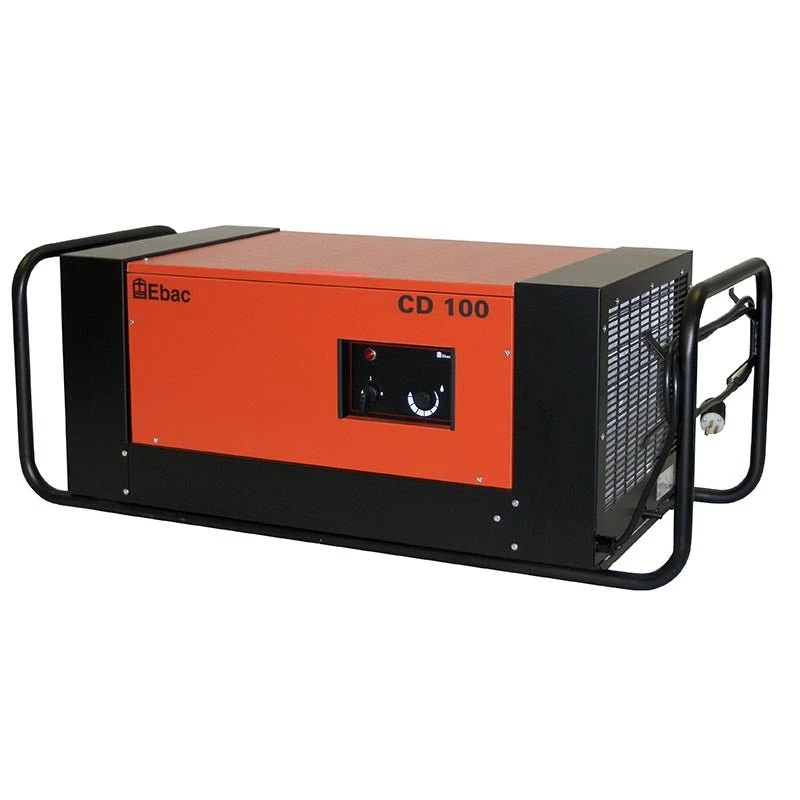

Ebac CD-100 Industrial / Commercial Dehumidifier – 97 Pint Per Day(Ebac Cd100 Heavy Duty Dehumidifier)

The Ebac CD100 Dehumidifier is a Versatile Workhorse Designed for High Humidity Environments With Severe Temperatures and Harsh Conditions.

The impressive CD100 high capacity dehumidifier can be easily moved from site to site or can be permanently mounted and ducted to suit a variety of applications where moisture and humidity can wreak havoc. Warehouses, storage rooms, electrical and communication switching stations, locker rooms, basements, pumping stations, offshore oil rigs, and active and laid-up marine vessels have all found this rugged unit to be more than adequate for the task.

Designed to survive under adverse temperature and humidity conditions and to deliver the goods, the CD100 dehumidifier will effectively remove more than 90 pints of moisture per day under standard conditions (80°F, 60%RH), and will exceed 20 gallons per day under extreme conditions. Ebac’s unique “Reverse Cycle” defrosting feature allows the CD100 dehumidifier to function smoothly in temperatures down to 33°F without frost build-up. Its internal humidistat automatically switches on and off to save energy and expense by maintaining the desired level of humidity with intermittent operation.



How the Ebac CD-100 Dehumidifier Works

1. Moist air is drawn into the unit by a fan
2. The air passes over a cold surface
3. As the air is cooled, it’s moisture condenses
4. The collected moisture drips into the container
5. The cooled air is re-heated by the heat recovery system
6. Air passes back into the room 2°C warmer and considerably dryer
7. Defrost system automatically de-ices the unit as necessary
8. The unit switches off automatically when the container is full
9. When the unit achieves the selected level of dryness, it switches off automatically

Features of the Ebac CD100 Heavy Duty Low-Temperature Dehumidifier

• A rugged epoxy-coated, steel chassis.
• Carrying Handles
• A “floating” compressor for vibration and mobility protection.
• An adjustable humidistat to control the level of dryness desired.
• System lamps to tell the operating status of the unit at a glance.
• Gravity drain option – 1/2″ O/D
• Ebac’s unique “Reverse Cycle” defrosting system, for effective operation in low ambient temperatures.
• Standard 115V power requirements for operation in any location.

Ideal applications for the CD100 Commercial Dehumidifier Include
Warehouses – Factories – Sports Halls – Storage Areas – Laboratories – Oil Rigs – Agriculture – Kitchens – Hotel / Motel – Ships / Barges – Pumping Stations – Stadiums

Specifications of the Ebac CD-100 Commercial Dehumidifier

Dimensions	16″ H x 36″ W x 20″ D
Weight	135 lbs.
Moisture Removal	97 pints per day (80°F, 60% RH)
Operating Temperature Range	37°F – 95°F
Effective Area Coverage	10,594 cubic feet
Refrigerant	R407c
Airflow	700 CFM
Noise Level	66 d(B)A
Compressor	Reciprocating
Electrical	115V, 60 Hz, 1 Phase | 16 Amps (max) | 1090 Watts
Added Features	Adjustable Control Humidistat Built-In Carrying Handles
Ebac CD100 Owner’s Manual
Ebac CD100 Product Brochure / Spec Sheet
What’s in the Box?	Ebac CD100 Dehumidifier 10′ PVC Drainage Hose Jubilee Clip Product Manual
Warranty	One-year unconditional warranty against any manufacturing defects in workmanship or material.





Frequently Asked Questions (FAQs)

Q: How large of a space can the Ebac CD100 dehumidify?
A: The CD100 is effective for areas up to 10,594 cubic feet, making it ideal for warehouses, factories, storage rooms, and marine environments.

Q: Does this dehumidifier include a condensate pump?
A: No, but a pump can be optionally added. The standard configuration includes a gravity drain. The optional pump can discharge water up to 30 feet away.

Q: Can this unit be wall-mounted?
A: Yes, the CD100 is compatible with an optional wall mounting bracket, which must be purchased separately. The CD100E model includes the bracket by default.

Q: Is it suitable for cold environments?
A: Absolutely. Thanks to its reverse cycle defrost system, the CD100 functions reliably down to 33°F.

Q: How noisy is the unit?
A: With a noise level of 66 dBA, it is relatively quiet for a high-capacity industrial unit—suitable for use in utility rooms, pump stations, and back-of-house areas.

Q: How often does the unit need maintenance?
A: Basic maintenance like coil cleaning and fan inspection is recommended periodically. The fan motor is sealed for life and does not require lubrication.

Take Control of Moisture—Order the Ebac CD100 Today

Whether you’re protecting valuable inventory or ensuring safety in a high-humidity workplace, the Ebac CD100 delivers unmatched performance and reliability. Add the optional wall mount bracket for a secure, space-saving installation in tight quarters.

Order Now to safeguard your facility from moisture-related damage!
