Product Overview

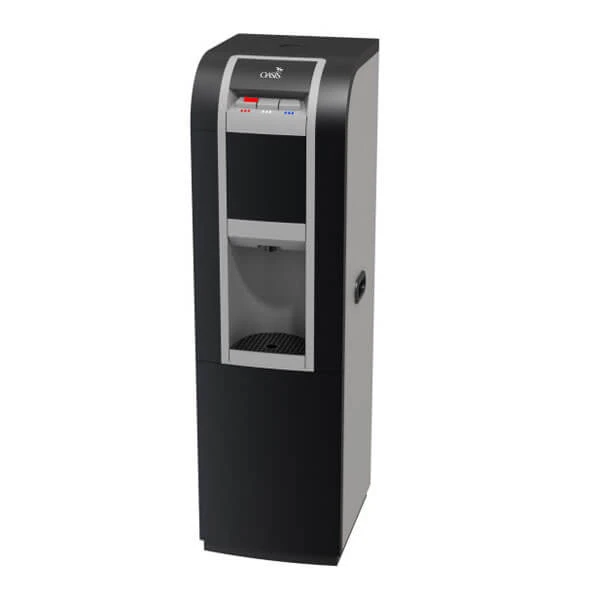

The Aqua Bar Point of Use Bottleless Water Cooler is streamlined with distinctive styling and versatile features.

Looking for a practical solution to heavy jugs of water? The AquaBar II is a three-temperature bottleless water cooler that will provide an endless supply of clean, filtered drinking water on demand. The large, 4-gallon stainless steel storage reservoir is perfect for high-traffic applications.

The Aqua Bar POU Bottleless Water Cooler Offers Your Choice of Filtration

No Filtration – This option may be desirable for homes, businesses, or offices that use Point of Entry filtration.

2-Stage – Galaxi Filter and Sediment Filter Configuration

• Stage 1 – Sediment Filter – Spun bonded polypropylene ‘green’ sediment filter.
  Replace the sediment filter once per year.
• Stage 2 – Galaxi by Oasis – Galaxis’ unique filter design combines activated carbon with a cellulose-free synthetic fiber matrix. Superior to traditional active carbon filter elements, the Galaxi takes water filtration to the next level. Performs as a sediment filter and a carbon block in a single cartridge.
  Replace the Galaxi filter once per year.

3-Stage – Galaxi Filter, Reverse Osmosis, and Post Carbon Filter Configuration

• Stage 1 – Galaxi by Oasis – Galaxis’ unique filter design combines activated carbon with a cellulose-free synthetic fiber matrix. Superior to traditional active carbon filter elements, Galaxi takes water filtration to the next level. Performs as a sediment filter and a carbon block in a single cartridge.
  Replace the Galaxi filter once per year.
• Stage 2 – RO Membrane* – 50 GPD Reverse Osmosis – For removal of 99.9% of all types of impurities from the water including dissolved solids, viruses, and bacteria.
  Replace the RO membrane every 2 years.
• Stage 3 – Post Carbon Filter – Polishes off the entire filtration process for great-tasting, crisp, clean water.
  Replace the post-carbon filter once per year.

*NOTE: Coolers equipped with Reverse Osmosis require an outlet drain. Water tanks in coolers with Reverse Osmosis take approximately 1-1/2 – 2 hours to fill from empty.

Features of the Galaxi Water Filter

• Galaxi’s unique filter design combines activated carbon with a cellulose-free synthetic fiber matrix. Superior to traditional active carbon filter elements, the Galaxi takes water filtration to the next level. Galaxi performs as a sediment filter and a carbon block in a single cartridge.
• Dramatically reduces chlorine taste & odor
• High-performance blocking improves dirt-holding capacity
• Prevents carbon fines from being released into the water stream
• Reduces lead & cysts

Features of the AquaBar POU Bottleless Water Cooler

• Three temperature model – Hot, Cook (room temperature), and Cold

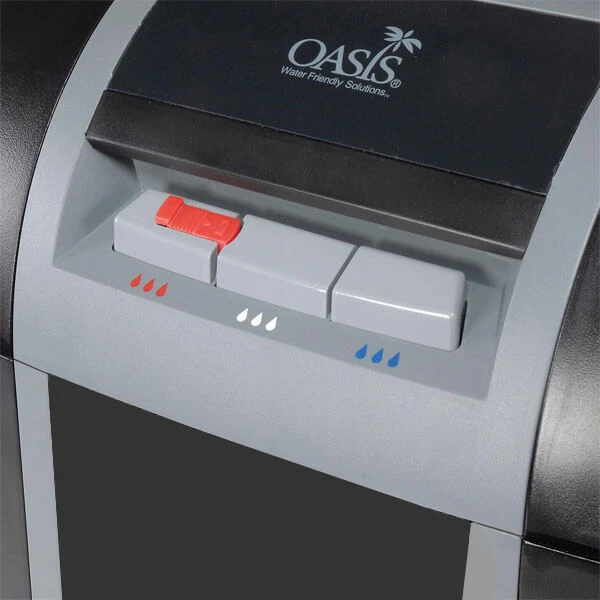

• Push-summary controls for dispensing water – Easy to use summarys located on the front display panel.
• Sturdy ABS cabinet – Charcoal black front and top with powder-coated removable metal side panels. Pre-drilled holes on side of the cabinet for cup dispenser installation.
• Hot water safety faucet – Safety faucet summary requires a two-step action to prevent accidental dispensing. To dispense hot water, slide the red tab to the left and push down on the summary.

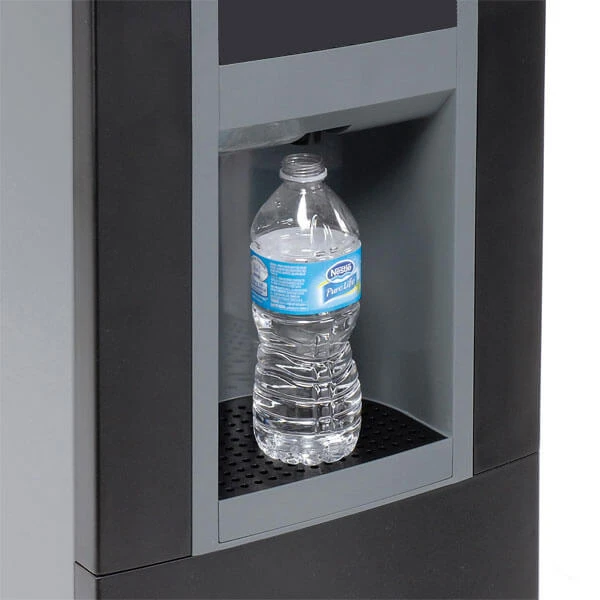

• Large 8-1/2″ dispensing area for filling sports bottles and carafes
• Drip receptor – Durable drip tray lifts out for easy removal and is dishwasher safe
• Optional in-tank UV accessory for continual tank sanitizing
• Optional Pedestal – Raises the AquaBar II by 6-1/2″
• Certified to NSF/ANSI 372 for low lead content
• Energy Star certified
• cUL listed
• 3-year limited warranty

Aqua Bar Bottleless Water Cooler Specifications

Dimensions	45-1/3″ (H) x 12-3/4″ (W) x 16-3/4″ (D)
Approx. Weight	60 lbs.
Dispensing Area Height	8-1/2″
Cold Water Specifications
Cooling Rate	> 2 Gallons of 50°F water per hour
Cold Water Temperature Range	40°F – 50°F
Cold Water Storage Tank Capacity	4 Gallons
Cold Water Tank	300 series stainless steel tank
Cold Water Refrigeration	Convection cooled condenser, internal spring mounted hermetically sealed compressor with automatic overload protector.
Hot Water Specifications
Heating Rate	> 2 Gallons of 165°F water per hour
Hot Water Temperature Range	165°F – 194°F
Hot Water Booster Temp	200°F
Hot Water Storage Tank Capacity	1-1/2 Quart
Hot Water Tank	300 series stainless steel tank with a 500-watt element
Room Temp Storage Tank	Continuous Supply
Electrical Requirements	115V, 60 Hz, 4.9 Amps
Water Connection	1/4-inch to a cold water line
Warranty	Three years on the sealed refrigeration system, one year on most component parts
AquaBar II Bottleless Water Cooler Owner’s Manual
Components in this water cooler are lead-free as defined by the Safe Drinking Water Act Amendments of 1986 and the Lead Contamination Control Act of 1988. Model Listed by Underwriter’s Laboratories to U.S. and Canadian Standards.
The purchase of this cooler does not include installation. We recommend a licensed plumber familiar with local plumbing code(s). Pure n Natural Systems, Inc. is not liable for damage or other undesirable consequences incurred by misuse, improper assembly or improper installation of any Bottleless Water Cooler.
