Product Overview

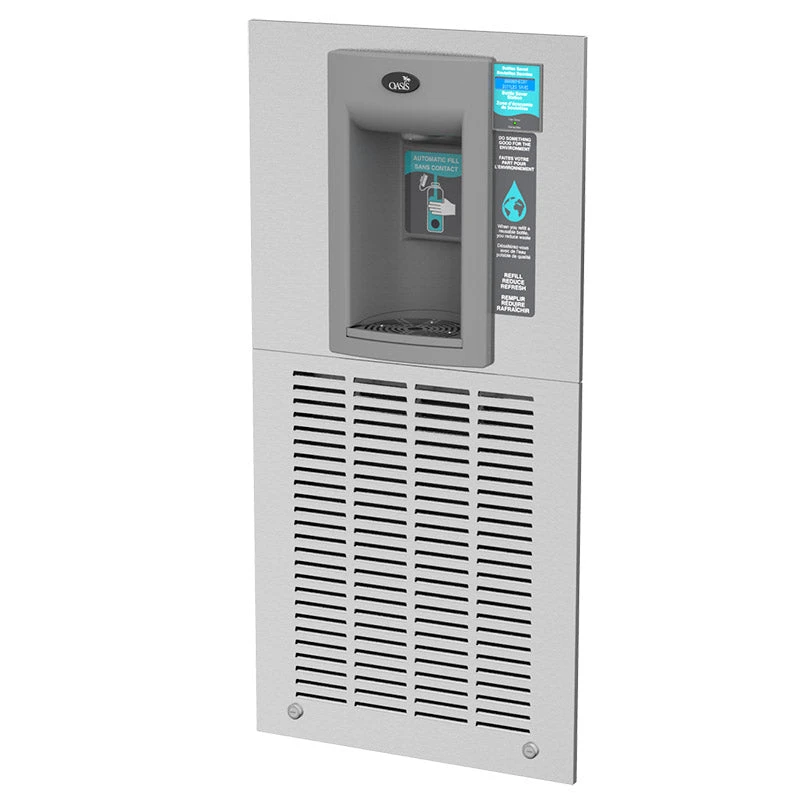

Aqua Pointe™ Delivers Sparkling Clean, Chilled Water for your Patrons, Clients, and Employees with Hands-free Operation.

Filtered water never tasted so good with the Aqua Point Sports Bottle Filler. Hands-free operation electronically dispenses refreshingly clean & chilled water without pressing summarys or touching the unit. It’s large 10-1/2″ alcove (dispensing area) easily accommodates large sports bottles for easy, no-mess refills.

3 Models to Choose From

• MW8EBF delivers *8 gallons of chilled, filtered drinking water per hour.
• MW12EBF delivers *12 gallons of chilled, filtered drinking water per hour.
• MWEBF is a NON-REFRIGERATED unit and delivers an unlimited supply of ambient temperature water.

*(50°F) per hour (at 90°F ambient and 80°F inlet water).

Perfect for Gyms, Health Clubs, Medical Centers, Schools, Universities, Cafeterias, Public Areas, Etc.

Features of the Aqua Pointe MW Series Hands-Free Bottle Filler

• Hands-free bottle filler with auto 20-second shut-off, integrated counter, and filler monitor.
• Water flow to the bottle is by means of an electronically activated solenoid.
• Aqua Pointe™ bottle filler components contain Freshield, which utilizes a silver-based antimicrobial compound that reduces the growth of micro-organisms and mildew to protect the surfaces from discoloration, odors, and degradation.
• Basin is designed to eliminate splashing and standing water.
• The cooling system utilizes R134a refrigerant and complies with ANSI A1117.1 and ADA.
• Built-in 100 micron strainer stops particles before they enter the waterway.
• Waterways are lead-free in both materials & construction.
• Heavy-duty steel frame with brushed stainless steel cabinet finish
• High-efficiency cooling tank and coil
• The filtration system is an activated carbon block filter that removes chlorine, tastes, odors, fine particulates, and lead from cold water. Capacity – 1000 USG.
• Built-in panel locks with removal front panels allow for easy access to the filtration and chiller.
• Shipped with wall mounting bracket and complete installation instructions.

Specifications of the Aqua Pointe MW Series Electronic Hands-Free Bottle Filler

Dimensions	40-3/4″ (H) x 19-3/4″ (W) 11-5/16″ (D) installed behind a wall
Weight	MW8EBF – 78 lbs. MW12EBF – 78 lbs. MWEBF – 26 lbs.
Rated GPH Capacity	MW8EBF – 8 gallons of 50°F water per hour MW12EBF – 12 gallons of 50°F water per hour MWEBF – continuous supply of ambient temp. water
Compressor	MW8EBF – 1/5 HP MW12EBF – 1/5 HP
Full Load Amps	MW8EBF – 4.6 MW12EBF – 8.7 MWEBF – .10
Rated Watts	MW8EBF – 340 MW12EBF – 620 MWEBF – 7
Product Spec Sheet
ADA Compliant for reach ranges – These models meet guidelines for children’s (ages 5 and up) accessibility providing the floor to summary height is less than 40 inches and proper clear floor space is provided for frontal approach. (Prior to roughing, consult with local, state, and federal codes for proper mounting height.)
Components in this fountain are lead-free as defined by the Safe Drinking Water Act Amendments of 1986, and the Lead Contamination Control Act of 1988.
This product is certified to NSF/ANSI Standard 61 Annex G (weighted average lead content of <=0.25%) and is in compliance with California’s Health and Safety Code Section 116875 (commonly known as AB1953). The green filter has been tested to ANSI / NSF Standard 42 – not by NSF.
Models covered by this specification comply with all known Plumbing Codes. Listed by Underwriters’ Laboratories to U.S. and Canadian standards.
